ONCO-GRIP® Extension line
ISOMed offers a complete range of Huber Needles with extensions set and movable wings called Onco-Grip. Onco-Grip are individualy packaged in a rigid blister pack and sterilized with ethylene oxide.

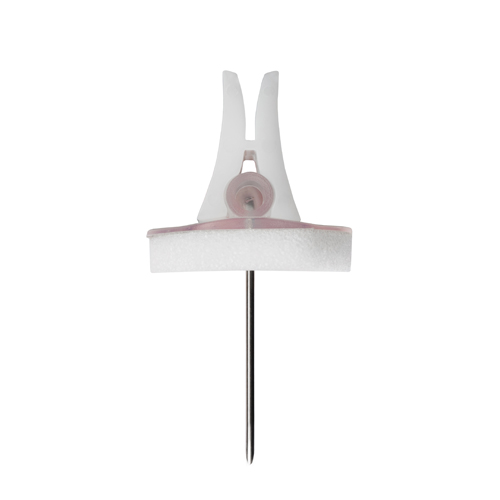

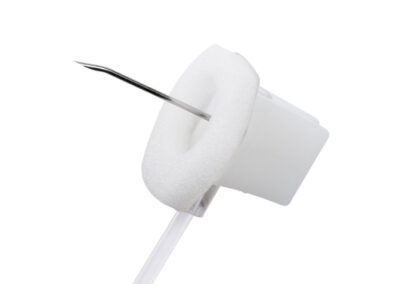

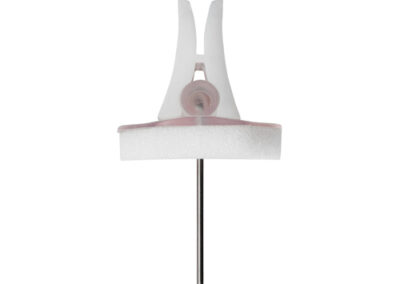

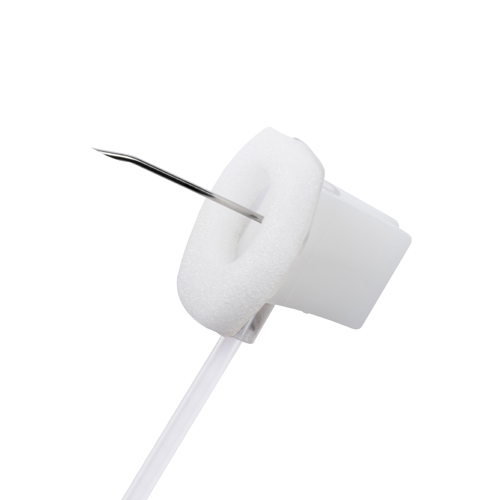

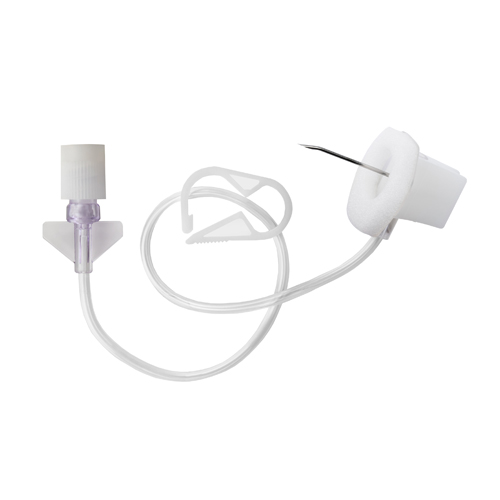

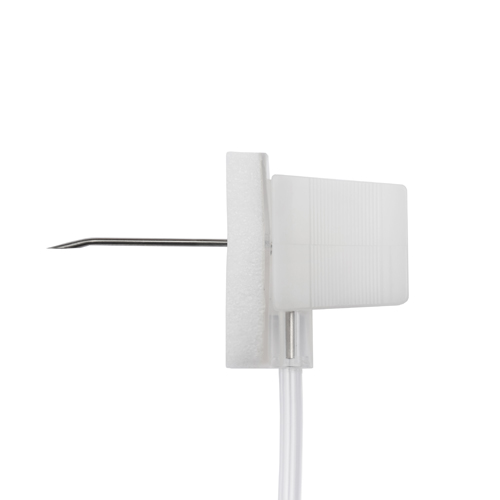

ONCO-GRIP® – Extension line with Huber needle & movable wings
Trough its FB Medical trademarks, ISOMed offers a complete range of Huber Needles with extensions set and movable wings called Onco-Grip.
- Movable wings reducing risks of needle tear
- Non-siliconized needles minimize “back out”
- The tube, with a one-hand shut-off clamp, prevents the collapse and kinking of the tube
- The length of the extension line is 18 cm
- The approximate priming volume is 0.2 ml
- Onco-Grip are individualy packaged in a rigid blister pack and sterilized with ethylene oxide .
| REF. | DIAMETER | LENGTH | ||
|---|---|---|---|---|
| GAUGE | (mm) | (mm) | (inches) | |
| GN 2215 | 22 | 0.7 | 15 | 5/8 |
| GN 2220 | 22 | 0.7 | 20 | 3/4 |
| GN 2225 | 22 | 0.7 | 25 | 1 |
| GN 2015 | 20 | 0.9 | 15 | 5/8 |
| GN 2020 | 20 | 0.9 | 20 | 3/4 |
| GN 2025 | 20 | 0.9 | 25 | 1 |
| GN 1915 | 19 | 1.1 | 15 | 5/8 |
| GN 1920 | 19 | 1.1 | 20 | 3/4 |
| GN 1925 | 19 | 1.1 | 25 | 1 |
The entire range is available with injection site: add Y to the reference; or with a secure injection site: add YS to the reference.
Packaging: 50 units per box Made in France
